The product ShockTiltIndicator labels (applied chinese patent in 2015) are available in six stock sensitivity levels, ranging from
5，10，15，25，37.5 and 50

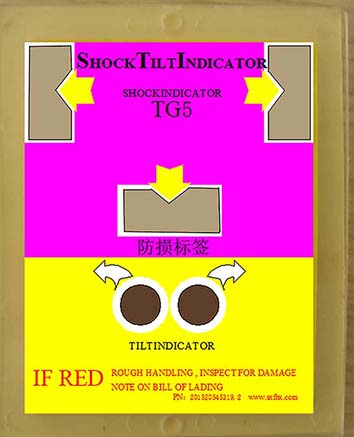

G's. Each ShockTiltIndicator label is composed of one shockindicator and
one tiltindicator. The ShockTiltIndicator label can not only tells you
whether your product obtains an impact but also tells you whether your product
is tipped. Regardless of the amount of impact your product can withstand, there
is a ShockTiltIndicator label specifically designed to protect it.

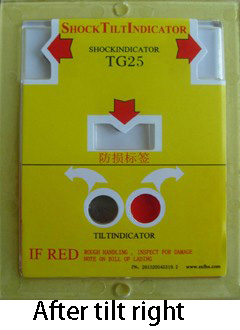

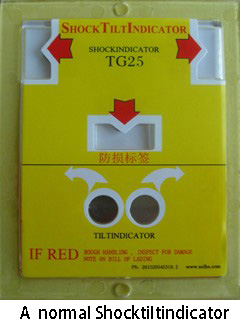

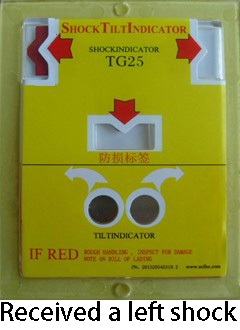

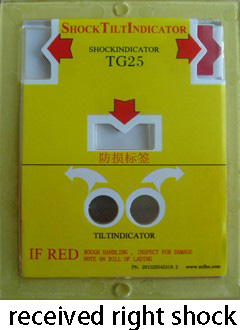

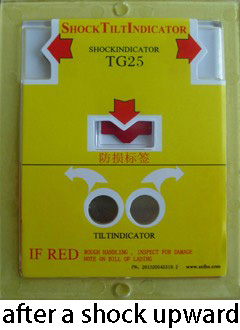

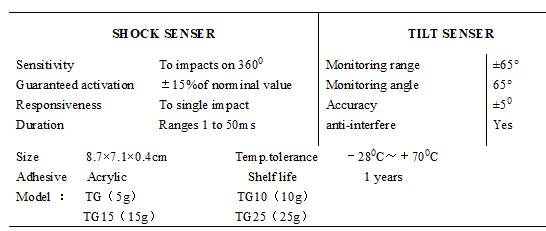

Specifications of ShockTiltIndicator
|
SHOCK SENSER |
TILT SENSER |
||
|
Sensitivity Guaranteed activation Responsiveness Duration |
To impacts on 3600 ±15%of norminal value To single impact Ranges 1 to 50ms |
Monitoring range Monitoring angle Accuracy anti-interfere |
±65° 65° ±50 Yes |
|
Size 8.7×7.1×0.4cm Temp.tolerance －280C～＋700C Adhesive Acrylic Shelf life 1 years Model ： TG5（5g） TG10（10g） TG15（15g） TG25（25g） TG37（37.5g） TG50（50g） |
|||
There are two things you need to know to begin selecting a ShockTiltIndicator sensitivity: shipment size and weight. The selection guide should always be used as a starting point only. The indicator that will be best suited to your application will also take into account product fragility and packaging. Drop height will also affect activation . Best seller: 25G range for most electronic equipment, glassware, etc.
ShockTiltindicator selection guide 2: size and weight for shocktiltindicators
|
ShockTilt Indicator |
0.14 -0.42 m3 |
0.42 -1.42 m3 |
1.42 -2.83 m3 |
2.83 -7.08 m3 |
7.08 -14.16 m3 |
14.16 -304.8 m3 |
304.8+ m3 |
|
0 -5 kg |
75G |
75G |
TG 50 |
TG 37 |
N/A |
N/A |
N/A |
|
5 –11kg |
75G |
TG 50 |
TG 50 |
TG 37 |
TG 25 |
N/A |
N/A |
|
11 -23kg |
TG50 |
TG 50 |
TG 37 |
TG 25 |
TG 25 |
TG 15 |
N/A |
|
23 -45 kg |
TG 50 |
TG 37 |
TG 37 |
TG 25 |
TG 15 |
TG 15 |
TG 10 |
|
45 -113 kg |
TG 37 |
TG 37 |
TG 25 |
TG 25 |
TG 15 |
TG 15 |
TG 10 |
|
113 -454 kg |
TG 37 |
TG 25 |
TG 25 |
TG 15 |
TG 15 |
TG 10 |
TG 10 |
|
454 -907 kg |
TG 25 |
TG 25 |
TG 25 |
TG 15 |
TG 15 |
TG 10 |
TG 5 |
|
907 -2,268 kg |
TG 25 |
TG 25 |
TG 15 |
TG 15 |
TG 10 |
TG 10 |
TG 5 |
|
2,268 -4,536 kg |
TG 25 |
TG 15 |
TG 15 |
TG 15 |
TG 10 |
TG 10 |
TG 5 |
|
4,536 -6,804 kg |
N/A |
TG 15 |
TG 15 |
TG 10 |
TG 10 |
TG 5 |
TG 5 |
|
6,804 -9,072 kg |
N/A |
N/A |
TG 10 |
TG 10 |
TG 5 |
TG 5 |
TG 5 |
|
9,702 -13,608 kg |
N/A |
N/A |
N/A |
TG 5 |
TG 5 |
TG 5 |
TG 5 |
|
13,608+ kg |
N/A |
N/A |
N/A |
N/A |
TG 5 |
TG 5 |
TG 5 |
ShockTiltindicator selection guide 2: activation height for shocktiltindicators
|
Goods weight |
TG25 Yellow25g |
TG37 Purple37.5g |
TG50 Red50g |
Orange 75g |
Green 100g |
||
|
<45 kg |
―――― |
0.30～0.48m |
0.30～0.60m |
0.60～0.91m |
0.91～m |
||
|
>45 kg |
0.13～0.30m |
0.17～0.40m |
0.26～0.48m |
―――― |
―――― |
||
|
|
|
||||||
|
Model |
TG15 Blue / 15g |
TG10 Cyan / 10g |
TG5 Pink / 5g |
||||
|
>45 kg |
0.08～0.26m |
0.05～0.19m |
0.03～0.15m |
||||
