Shockindicator
发布时间:2023-03-31    浏览次数:

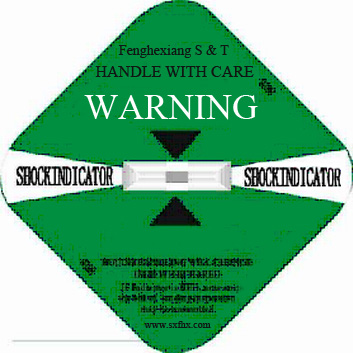

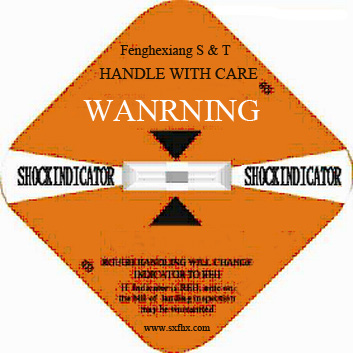

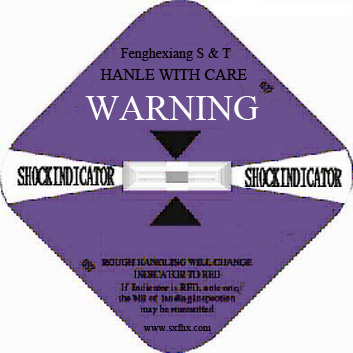

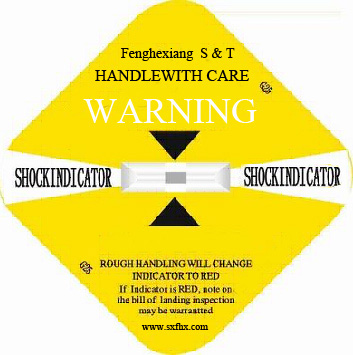

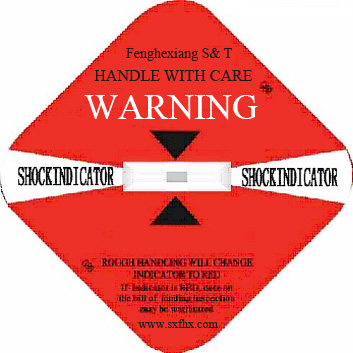

ShockindicatorShockindicator (similar to shcokwatch and drop-n-tell) has become the world's most recognised 'Handle with Care' label, delivering a message that cannot be ignored. Such is the effectiveness of the label, the reduction of transit losses have been shown to be between 50% and 90%. They also help you pinpoint the safest couriers and routes and validate the carrier damage claims process.

The product Shockindicator labels are available in five stock sensitivity levels, ranging from 25 to 100 G's.  Regardless of the amount of impact your product can withstand, there is a Shockindicator label specifically designed to protect it. The Selection Guide will help you choose the right one.

SHOCHINDICATOR can be used to monitor the following goods: Avionics equipment, Service/repair electronics, Home accessories, Instrumentation/gauges, Audio/visual equipment, Computer equipment/ media, Electro-mechanical equipment, Any UPS shipment, Auto parts, Medical equipment, Art/sculpture, Lamps/china/porcelains, Displays/exhibits, Furniture, Copiers/printers and other equipment.

Specifications of SHOCKINDICATOR

Size

Temp.tolerance

Sensitivity

Guaranteed activation

Responsiveness

Duration

Adhesive

Shelf life

10×10cm

280C~+700C

To impacts on 3600 axis

±15%of norminal value

To single impact

Ranges 1 to 50ms

Acrylic

2 years

There are two things you need to know to begin selecting a Shockindicator sensitivity: shipment size and weight. The selection guide should always be used as a starting point only. The indicator that will be best suited to your application will also take into account product fragility and packaging. Drop height will also affect activation . Best seller:25Grange for most electronic equipment, glassware, etc.

SHOCKINDICATOR selection guide 1Weight and Size

size (m3)

W(kg)

0.001 -0.030

0.031 - 0.135

0.136 - 0.400

0.401 - 1.350

1.351+

0 - 4.5

Green100g

Green  100g

Orange 75g

Orange 75g

Red     50g

4.6 - 11.25

Green  100g

Orange  75g

Orange 75g

Red     50g

Red     50g

11.7 - 22.5

Orange 75g

Orange  75g

Red    50g

Red     50g

Purple37.5g

23 - 45

Orange 75g

Red     50g

Red    50g

Purple37.5g

Purple37.5g

45.5 - 112.5

Red    50g

Red     50g

Purple37.5g

Purple37.5g

Yellow   25g

113 - 450

Red    50g

Purple37.5g

Purple37.5g

Yellow   25g

Yellow   25g

451+

------

Purple37.5g

Purple37.5g

Yellow   25g

Yellow   25g

SHOCKINDICATOR selection guide 2: activation height for shockindicators

Goods weight

Yellow25g

Purple37.5g

Red50g

Orange 75g

Green 100g

<45 kg

――――

0.300.48m

0.300.60m

0.600.91m

0.91m

>45 kg

0.130.30m

0.170.40m

0.280.48m

――――

――――

SHOCHINDICATOR can be used to monitor the following goods: Avionics equipment, Service/repair electronics, Home accessories, Instrumentation/gauges, Audio/visual equipment, Computer equipment/ media, Electro-mechanical equipment, Any UPS shipment, Auto parts, Medical equipment, Art/sculpture, Lamps/china/porcelains, Displays/exhibits, Furniture, Copiers/printers and other equipment.
